製品詳細
起源の場所: 江蘇、中国
ブランド名: PERWIN
支払いと送料の条件
最小注文数量: 4
価格: $88,000
機械容量: |
1200BPH |
電圧: |
AC三相380V |
寸法: |
7500*3500*1400mm |
重さ: |
2000 kg |
充填範囲: |
4〜70ml |
充填精度: |
±1~3% |
充填速度: |
6000BPH |
充填方法: |
3セットのper動ポンプ |
冷却時間: |
3.5〜5分 |
皿の積み重ね: |
スタックごとに5〜10皿 |
力: |
380V 50Hz、約9 kW |
圧縮空気: |
0.4～0.8MPa |
針の温度を充填します: |
40〜45°C |
生産速度: |
≧3200pcs/min |
コアコンポーネント: |
モーター、圧力容器、ポンプ、PLC、ギア、ベアリング、ギアボックス、エンジン、HMI |
機械容量: |
1200BPH |
電圧: |
AC三相380V |
寸法: |
7500*3500*1400mm |
重さ: |
2000 kg |
充填範囲: |
4〜70ml |
充填精度: |
±1~3% |
充填速度: |
6000BPH |
充填方法: |
3セットのper動ポンプ |
冷却時間: |
3.5〜5分 |
皿の積み重ね: |
スタックごとに5〜10皿 |
力: |
380V 50Hz、約9 kW |
圧縮空気: |
0.4～0.8MPa |
針の温度を充填します: |
40〜45°C |
生産速度: |
≧3200pcs/min |
コアコンポーネント: |
モーター、圧力容器、ポンプ、PLC、ギア、ベアリング、ギアボックス、エンジン、HMI |

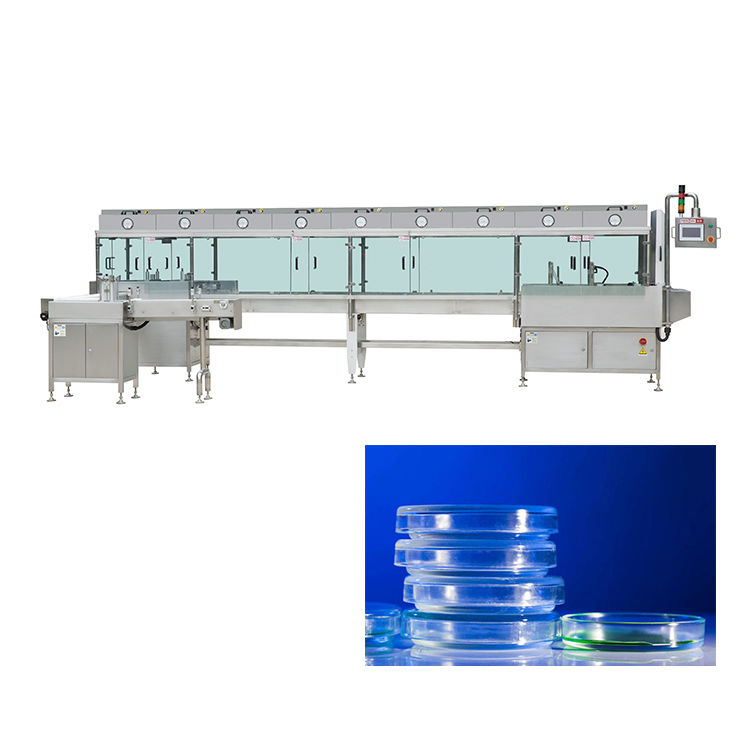

PERWIN's new generation of aseptic petri dish filling line can be designed with different functional modules according to the customer's capacity requirements, plant conditions and different industries where the culture medium is applied.
| Item | Description |
|---|---|
| Product specifications | 90mm mono and double area plates and 140mm and 55mm plates |
| Filling volume | 4ml~70ml |
| Filling accuracy | ±1~3% |
| Cooling time | 3.5~5min, customer adjustable |
| Production speed | ≥3200pcs/min (for 90mm dish with 5min cooling time) |
| Filling method | 6 sets of peristaltic pumps, each with independent stepping system |
| Sheep blood adding system | Includes peristaltic pump, blood bag storage rack, and exclusive FFU area |
| Changeover parts | Equipped for three other specifications (4-6 lanes) |
| Filling needle insulation | Prevents liquid cooling and solidification (40-45°C) |
| FFU | 11 sets covering entire process, including sheep blood station |
| Dish stack | 5-10 dishes per stack (customer adjustable) |
| Power | 380V 50Hz, ~9 KW |
| Control method | PLC intelligent linkage with touch screen control |
| Compressed air | 0.4~0.8Mpa |
Compared to Chinese counterparts: Stronger R&D team; complete after-sales service system; stronger customization ability.
Compared with European and American counterparts: Shorter delivery time; Lower prices for products with the same configuration and output; Higher automation and intelligence at the same price; Lower after-sale maintenance costs.
Free spare parts for the first year (except for intentional damage). Online support for machine installation, operation and maintenance. Engineer overseas on-site service. Maintenance reminder service every 3 months. 24/7 after-sales online service. Complete documentation for IQ, OQ, PQ, DQ etc.
English operation interface and documentation. English communication for all services. After-sales service available across time zones with 24-hour support.
Long-term cooperation with Roche. Based on successful initial cooperation, one customer purchased 12 production lines in a follow-up order.
